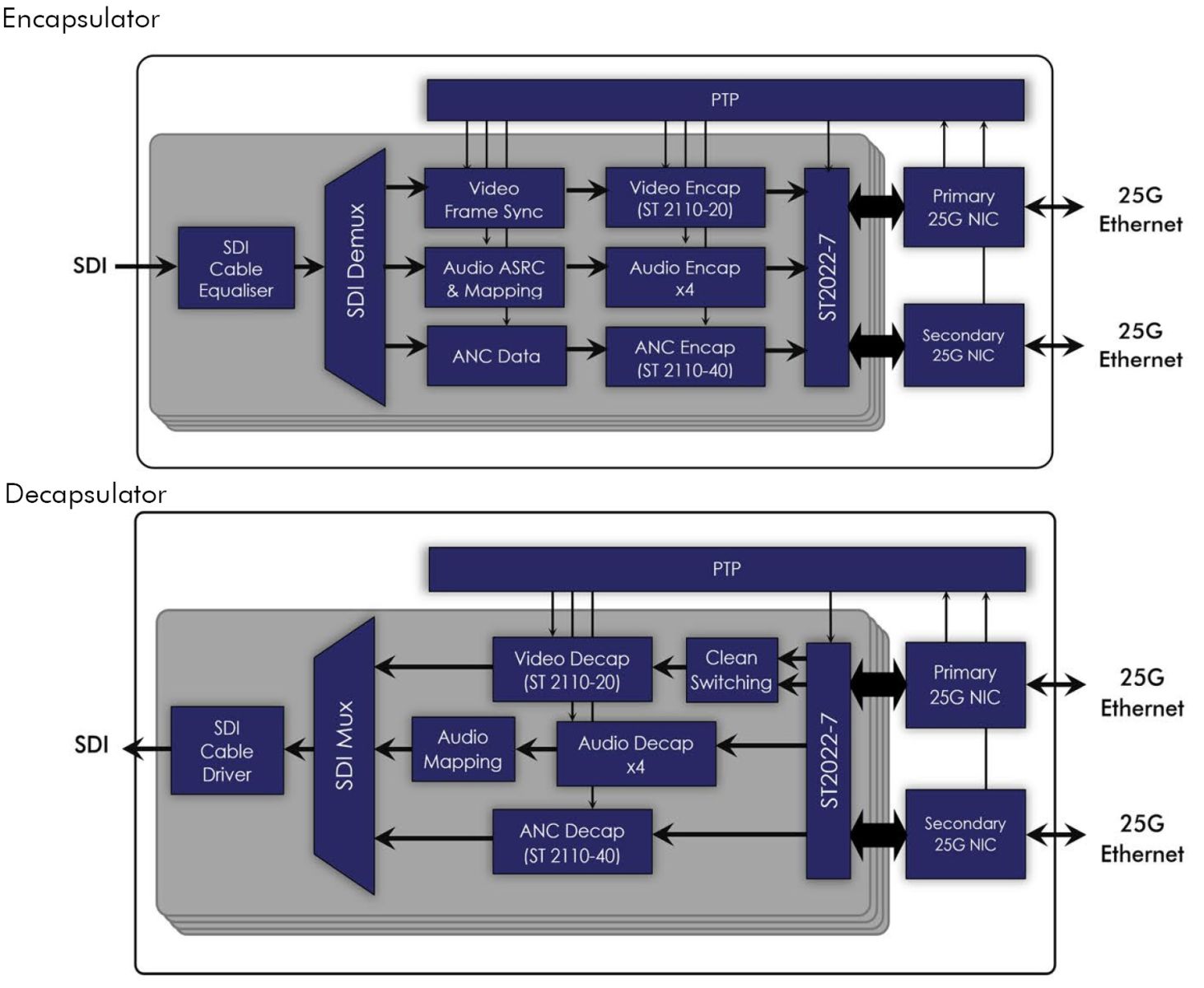

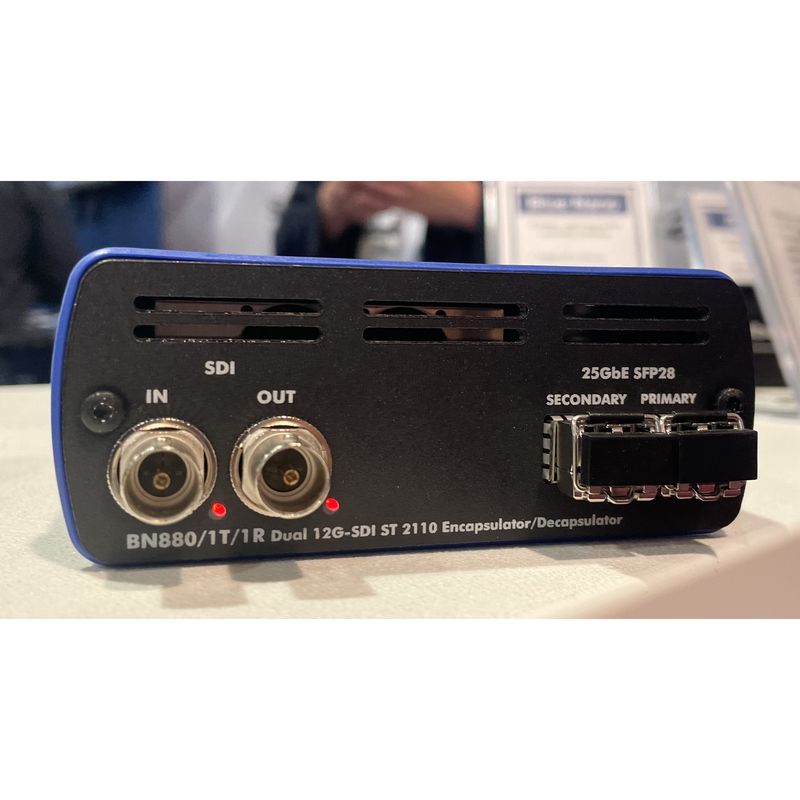

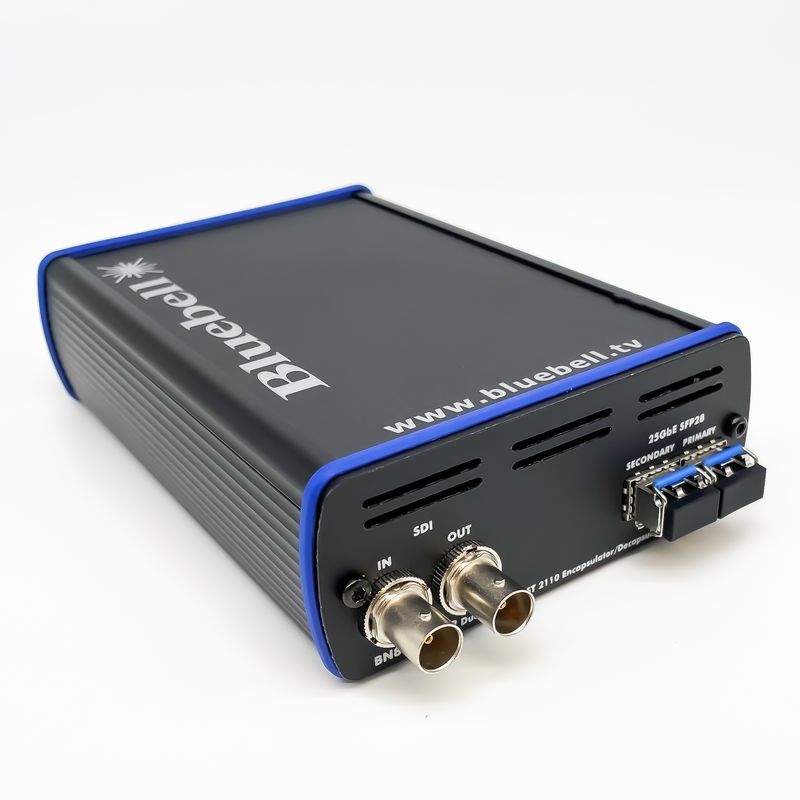

Chaque canal traite un flux vidéo, quatre flux audio et un flux ANC. Il est possible de remapper librement jusqu’à 16 canaux audio par flux audio. Tous les modèles sont équipés de deux ports média IP 25 Gigabit Ethernet (SFP28) avec prise en charge totale de la redondance hitless ST 2022-7.
L’appareil est configuré et contrôlé via NMOS ou Ember+, ou via une API RESTful publiée pour faciliter son intégration dans des systèmes de contrôle tiers. Le logiciel MN SET peut également être utilisé pour contrôler le BN880.
Specifications
SDI I/O
Standards Compliance
HD-SDI: SMPTE ST 292
3G-SDI: SMPTE ST 424
6G-SDI: SMPTE ST 2081
12G-SDI: SMPTE ST 2082
Input Equalisation (Typical)
Automatic to:
HD-SDI: 240 m @ 1.485 Gb/s
3G-SDI: 170 m @ 2.97 Gb/s
6G-SDI: 90 m @ 5.94 Gb/s
12G-SDI: 70 m @ 11.88 Gb/s
I/O Return Loss
<15 dB, 5 MHz – 1.485 GHz
<10 dB, 1.485 GHz – 3 GHz
<7 dB, 3 GHz – 6 GHz
<4 dB, 6 GHz – 12 GHz
Connectors
75-ohm BNC per IEC 60169-8, Amendment 2
IP
IP Media Ports
2x 25GbE via two SFP28 Transceivers
Hitless redundancy support
Full support through dual physical links
ST2022-7 applies to receiver and sender streams
Class D and A
Encapsulator Input
1x HD-SDI
Encapsulator Outputs (Essence/channel)
1x ST2110-20 (Video)
4x ST2110-30 (Audio)
1x ST2110-40 (ANC)
Decapsulator inputs (Essence/channel)
1x ST2110-20 (Video)
4x ST2110-30 (Audio)
1x ST2110-40 (ANC)
Decapsulator Output
1x HD-SDI
PTP support
ST2110-10 (AES-R16-2016)
Traffic Shaping
ST2110-21
Senders: Narrow Gapped
Receivers: Narrow Gapped, Narrow Linear & Wide
Compressed Audio
ST2110-31
Encapsulation Processing delay
Video w/o frame-sync = less than 1 line
Video w/frame-sync = max. 1 frame
Audio = depends on the configured packet time
Ancillary = depends on the sender profile
Decapsulation Processing delay
Video in minimum-delay mode = min. 2 lines, max. almost 1 frame of delay (depends on the output offset configuration)
Video in normal mode (frame buffer active) = 1 frame of delay, up to almost 2 frames of delay (depends on the output offset configuration)
Audio/ancillary = aligned to video offset
Clean switch = max. 2 frames of delay for the make-before-break mechanism to finish
Clean and Quiet Switching
OPTION, Make-before-break
Audio Packet time
A/B/C all packet times, with up to 16 channels per flow
Audio PCM sample rate(s)
48KHz
HDR metadata
Passthrough
Management
IPv4, In-band via Ethernet ports
DHCP support
RFC-2131 specification
LLDP
IEEE- 802.1AB
IGMP
V2 and V3 (RFC-2236 and RFC-3376)
Multicast streams
RTP – RFC 5771
Unicast streams
Not available
NMOS Support
IS-04 (Discovery) v1.2
IS-05 (Routing) v1.0
IS-08 (Audio Mapping) v1.0
IS-09 (System) – client only
BCP-002-01 (Essence Grouping)
TR-1001 Recommendation: System environment and device behaviours
Ember+
Bess protocol support (OPTION)
Packet jitter tolerance
Class A (10ms) -7 gap between both signal + jitter on signal maximum of 10ms
Sync
Genlock Output
OPTION, 1x PTP-Synchronised black and burst output
General
Input Voltage
8-17V
Power Consumption
12W typical (Depends on SFPs used)
Boot up time
~ 40 seconds
Operating Temperature
0-70°C
Dimensions
112 x 46 x 165mm excluding connectors
112 x 46 x 178mm including connectors
