Moniteurs LCD au design ultra-léger en aluminium, 2 x 3G/HD/SD-SDI avec boucle active, 1 x HDMI. Prise en charge HDR (PQ, HLG, SLOG) et LUT 3D. Traitement d’image 12 bits, écrans rétroéclairés LED et conception économe en énergie.

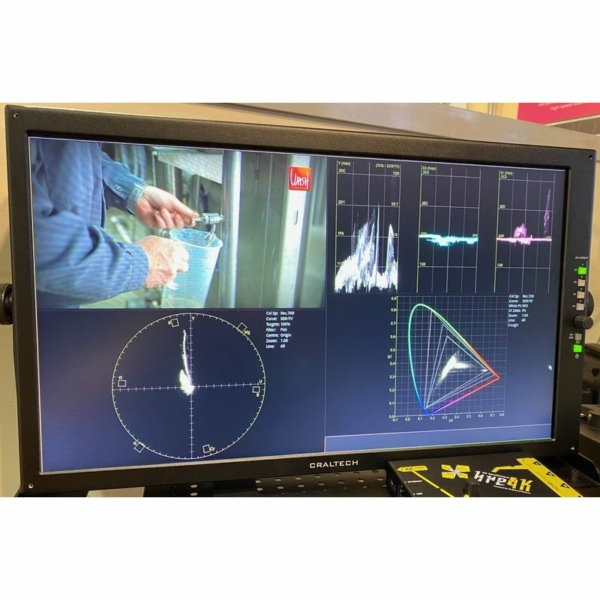

Les 2 x sorties actives peuvent être configurés comme des entrées supplémentaires afin de convertir le moniteur en un moniteur Quad-Split à 4 entrées 3G SDI.
Full Featured Monitors
– 18,5″ Ultra-Light Chassis LED Backlight LCD Monitor
– 3G/HD/SD-SDI Autosensing inputs with active loop through, HDMI, SFP Module slot and CVBS inputs
– Hardware based (NO Pc, NO hard-drive)
– Space-saving, fanless, energy-efficient and lightweight aluminium design
– Rugged and user friendly system for easy integration
– 12 bit image processing
– Quick control: Easy to use keyboard with user configurable direct keys and encoder
– Brightness, Contrast, Saturation adjustment
– Low processing delay
– Aspect Ratio Selection (4:3, 16:9)
– Gamma correction
– Backlight adjustment
– Color temperature adjustment (5600K, 6500K, 9300K and User (R, G, B Gain and Bias adjustment))
– Blue Only / Monochrome
– Markers
– Built in Audio Disembedder, 16 channel Audio Level Meters
– UMD & Tally
– Real time color Waveform and Vectorscope
– Selectable RGB, R, G, B, YCbCr, Y, Cb, Cr waveform
– Selectable transparency of all scopes and Audio level Meters
– Focus assist
– False color
– 1:1 Pixel Mapping
– Rugged and lightweight aluminium design
LCD PANEL
– 18.5″ LCD GRADE A Panel
– 1920 x 1080 pixels LED Backlight display
– Brightness: 350 cd/m²
– Contrast: 1000:1
– 178,178 Wide viewing angles
CONNECTIONS
Video inputs
– 4 x 3G/HD/SD-SDI Autosensing BNCS (2 of them selectable as Input or Active loop through (firmware MOD))
– 1 x HDMI
– 1 x SFP Module slot optional
– 1 x 12G optional input
Compatibility
Autosensing inputs between 3G/HD/SD and simultaneous viewing of all inputs with different resolutions and frequencies.
Updates
Through USB 2.0 high speed connection or Ethernet.
Configuration
Through Ethernet control free software Soft4Boxes Pro.
COMPATIBLE FORMAT
SD Standards
– SMPTE 125M/259M
– Formats: 480i (59.94) 576i (50)
– Cable lenght: 250m Belden 1694A
– BNC Connector
HD Standards
– SMPTE 274M and SMPTE 296M
– Formats: 1080p (30, 29.97, 25, 24, 23.98, 30PsF, 29.97PsF, 25PsF, 24PsF, 23.98PsF) 1080i (60, 59.94, 50) 720p (60, 59.94, 50)
– Cable lenght: 100m Belden 1694A
– BNC Connector
3G Standards
– SMPTE 424M-2006 level A and Level B Dual Stream (B-DS)
– Format: 1920x1080p (60, 59.94, 50)
– Cable lenght: 85m Belden 1694A
– BNC Connector
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M-B, ITU‑R BT.656, ITU‑R BT.601.
Audio Level Meters
Vu-meters standard in every input (16ch on 3G/HD/SDI and 8ch on HDMI)
SDI Video Sampling
4:2:2
SDI Audio Sampling
Standard frequency of 48 kHz and 24 bits.
SDI Color Precision
4:2:2 of 10 bits input and 12 bit internal processing.
SDI Color space
YUV
CONTROL
Built-in Keyboard
Multiple user configurable keys and encoder for adjusting all the monitor parameters.
External control
Full control of all parameters through ethernet using our free software Soft4Boxes or any other SNMP agent.
Calibration
Full compatible with Light illusion calibration software.
POWER REQUIREMENTS
Power supply
12V External power supply
IEC Cable (included) for 100-240 V.
Power Fail protection
Configuration will preserve and restore inmediatly when power back on the monitor.
Power Consumption
24 W
12G Ready MOD Hardware Upgrade: Add 2 x 12G inputs + SFP slot to SFX Monitors
Rack Mount Kit AC185RP: 19″ rack kit to rack 18,5″ monitor
Table Stand AC185P: Stand for 18,5″ monitor
