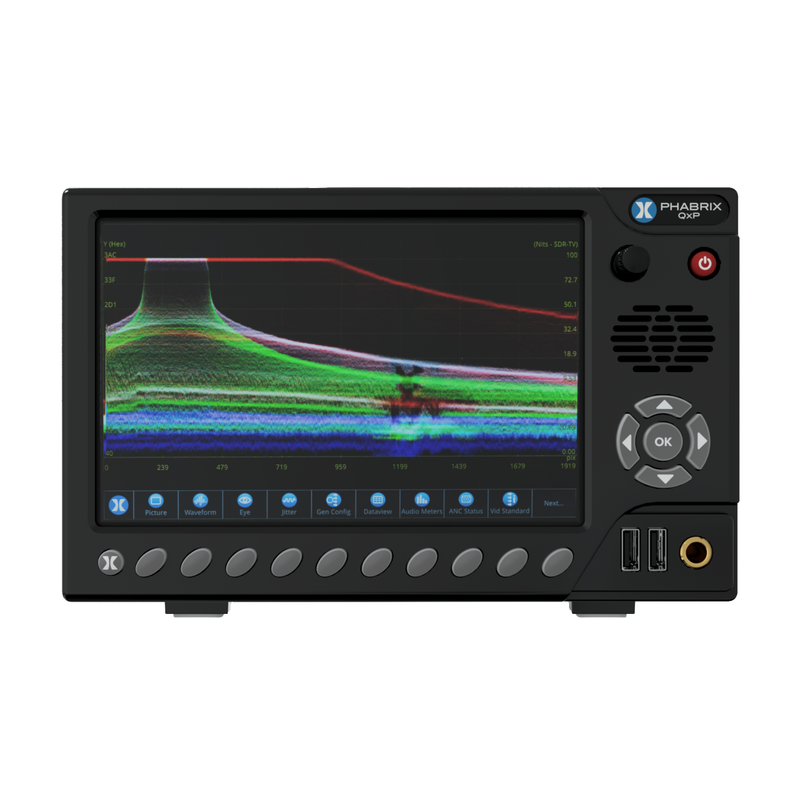

3U instrument with integral 1920 x 1200, 7 inch LCD touch screen
Class leading Waveform Test and Measurement Monitoring
V-mount/G-mount Battery Plate for external battery and portable operation
12G-SDI Physical Layer & Stress (option)
10/25G-IP SDI Audio & Video Generation and Analysis
AMWA NMOS Toolset
Analysis and Monitoring Toolset
DOLBY® E Decoder & Metadata Analyzer
User-defined Instrument Layout
Formats supported (Generation, Analysis & Monitoring)
ST 2110-20/-30/-31/-40 / 2022-7 / 2022-6 Analysis over 10G Ethernet
ST 2110-20/-30/-31/-40 / 2022-7 / 2022-6 Analysis over 25G*
Ethernet ST 2110-20/-30/-31/-40 / 2022-7 Generation*
ST 2022-6 Generation*
SDI IO Factory Option
3G / 1.5G / 270M**-SDI HD / SD** Analysis Factory Option
3G / 1.5G / 270M**-SDI HD Generation* Excludes External Battery
12G / 6G / 3G / 1.5G-SDI UHD Over SDI* Excludes External Battery
25G IP Link Rates Over SFP28*
*en option
**upcoming software release

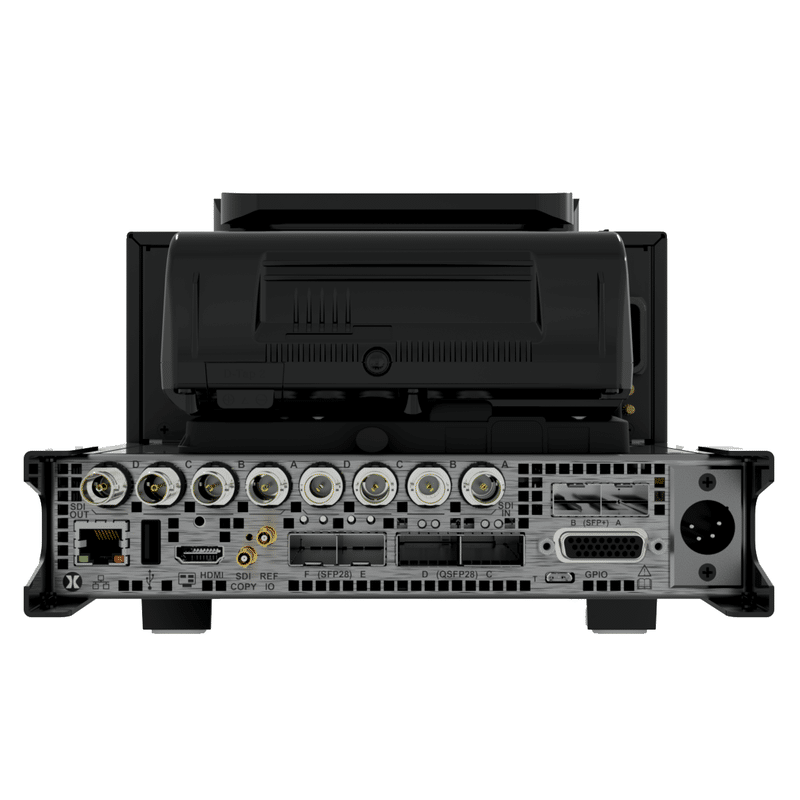

SDI inputs / outputs Factory Option
4 x SDI inputs, SD** / HD / 3G, 75 ohm terminated BNC
2 x SFP+ MSA / Non-MSA cages (12 Gbps copper or fiber SDI interfaces)
4 x SDI outputs, SD** / HD / 3G, 75 ohm BNC
**upcoming software release
In-field license upgrades
HDR, PCAP, Dolby E Decode and IP-MEAS
Optional licenses
Support for UHD/4K formats for both IP and SDI, including some HD/2K extended mode formats, and UHD 2110 Extended Mode formats (YCbCr/RGB 444, 8- / 10- / 12-bit; 48 to 60 Hz)
Hardware option
The SDI Eye and Jitter and the unique SDI-STRESS toolset provide all the tools for SDI physical layer analysis and compliance testing.
